Persistence in LangGraph

Welcome to the ninth installment of our Agentic AI with LangGraph series! In this deep dive, we explore Persistence a foundational concept that transforms simple stateless pipelines into production-grade AI agents capable of remembering interactions across sessions, recovering gracefully from crashes, pausing for human review, and even “traveling through time” to debug and fork workflows.

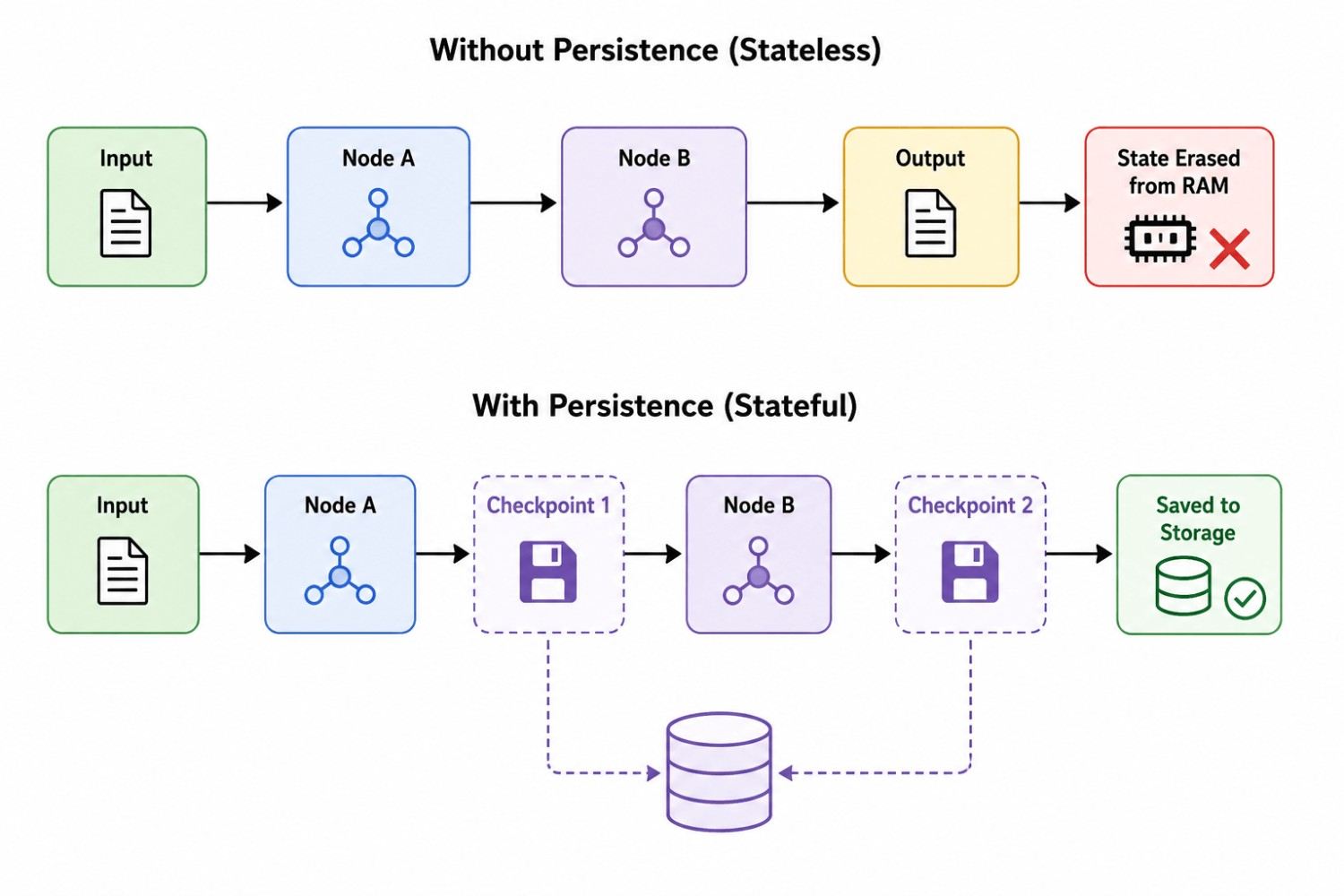

1. What is Persistence? #

In standard execution, when a workflow or chain is triggered via .invoke(), its entire state exists solely in volatile memory (RAM). Once the execution finishes (or if the server crashes midway), the state is permanently erased.

Persistence enables LangGraph to automatically serialize and persist the state of your graph at discrete milestones, allowing you to reload, inspect, resume, or fork the state at any point in time.

2. Core Concepts: Checkpointers, Supersteps, and Threads #

To master persistence, you need to understand three core building blocks:

A. Supersteps & Checkpoints #

LangGraph executes in rounds called Supersteps. In each superstep, one or more active nodes execute and produce updates to the state:

• At the end of every Superstep, the current state snapshot is saved as a Checkpoint.
• Every checkpoint receives a globally unique identifier (checkpoint_id) and references its parent_config checkpoint, creating an immutable history tree.

B. Checkpointers #

A Checkpointer is the persistence backend configured during graph compilation:

• InMemorySaver: Stores checkpoints in an in-memory dictionary. Ideal for unit testing, rapid prototyping, and notebook exploration.
• PostgresSaver / AsyncPostgresSaver: Production-grade checkpointers storing serialized state snapshots in PostgreSQL tables.
• SqliteSaver / MongoDBSaver / RedisSaver: Persistent storage options tailored for local desktop apps, document stores, or caching layers.

C. Threads #

To manage multiple independent conversations and concurrent users, LangGraph uses Threads:

• Every execution config requires a thread_id (e.g. {"configurable": {"thread_id": "session_42"}}).
• Checkpoints are isolated per thread, preventing state collisions between users.

3. Four Superpowers Enabled by Persistence #

4. End-to-End Hands-On Implementation #

Step 1: Define the State and Nodes #

from typing import TypedDict
from dotenv import load_dotenv
from langchain_openai import ChatOpenAI
from langgraph.graph import StateGraph, START, END
from langgraph.checkpoint.memory import InMemorySaver

load_dotenv()
llm = ChatOpenAI(model="gpt-4o-mini")

# 1. Define graph state schema
class JokeState(TypedDict):
    topic: str
    joke: str
    explanation: str

# 2. Define node logic
def generate_joke(state: JokeState):
    prompt = f"Generate a funny short joke on the topic: {state['topic']}"
    response = llm.invoke(prompt).content
    return {"joke": response}

def generate_explanation(state: JokeState):
    prompt = f"Write a short, fun explanation for the joke: {state['joke']}"
    response = llm.invoke(prompt).content
    return {"explanation": response}

Step 2: Assemble and Compile with a Checkpointer #

Pass the initialized checkpointer instance into graph.compile():

# Build graph topology
builder = StateGraph(JokeState)
builder.add_node("generate_joke", generate_joke)
builder.add_node("generate_explanation", generate_explanation)

builder.add_edge(START, "generate_joke")
builder.add_edge("generate_joke", "generate_explanation")
builder.add_edge("generate_explanation", END)

# Attach the Checkpointer
checkpointer = InMemorySaver()
app = builder.compile(checkpointer=checkpointer)

Step 3: Run Workflows with Isolated Threads #

Execute the workflow by passing a thread_id inside the configuration:

# Session 1: Topic = Pizza
config1 = {"configurable": {"thread_id": "thread-1"}}
result1 = app.invoke({"topic": "pizza"}, config=config1)

print("Result for Thread 1:")
print(f"Joke: {result1['joke']}")
print(f"Explanation: {result1['explanation']}\n")

# Session 2: Topic = Pasta (completely independent state)
config2 = {"configurable": {"thread_id": "thread-2"}}
result2 = app.invoke({"topic": "pasta"}, config=config2)

print("Result for Thread 2:")
print(f"Joke: {result2['joke']}")

Step 4: Inspecting State and State Snapshots #

You can inspect the latest state of any thread using app.get_state(config):

latest_state = app.get_state(config1)
print(latest_state)

Understanding the StateSnapshot Object #

When you call get_state(), LangGraph returns a StateSnapshot object containing rich metadata:

StateSnapshot(
    values={'topic': 'pizza', 'joke': '...', 'explanation': '...'},  # Current state data
    next=(),                                                         # Next node(s) to execute (empty if finished)
    config={'configurable': {'thread_id': '1', 'checkpoint_id': '1f06cc6e-93a2-...'}},  # Current Checkpoint ID
    parent_config={'configurable': {'thread_id': '1', 'checkpoint_id': '1f06cc6e-7a2f-...'}}, # Previous Checkpoint
    metadata={'source': 'loop', 'step': 2, 'thread_id': '1'},       # Execution metadata
    created_at='2025-07-29T21:56:42.071296+00:00',
    tasks=()                                                         # Tasks executed in this superstep
)

Step 5: Exploring History and Time Travel #

LangGraph allows you to retrieve the entire chain of checkpoints for a thread using app.get_state_history():

# Retrieve checkpoints in reverse chronological order (newest first)
history = list(app.get_state_history(config1))

for snapshot in reversed(history):
    step_source = snapshot.metadata.get("source", "unknown")
    step_num = snapshot.metadata.get("step", 0)
    cp_id = snapshot.config["configurable"]["checkpoint_id"]
    next_node = snapshot.next
    print(f"Step {step_num} [{step_source}] | Checkpoint: {cp_id[:8]}... | Next Node: {next_node}")

Replaying from a Past Checkpoint #

To re-run execution starting from a historical checkpoint without redoing previous steps, provide the specific checkpoint_id:

# Target checkpoint after 'generate_joke' was created, but before 'generate_explanation'
target_checkpoint_id = history[1].config["configurable"]["checkpoint_id"]

replay_config = {
    "configurable": {
        "thread_id": "thread-1",
        "checkpoint_id": target_checkpoint_id
    }
}

# Pass None as input to tell LangGraph to resume from saved state
replayed_result = app.invoke(None, config=replay_config)
print("Replayed Result:", replayed_result)

Step 6: State Forking and Mutations (update_state) #

What if you want to travel back in time, modify a variable, and see what happens? LangGraph provides app.update_state():

gitGraph
   commit id: "START (topic: pizza)"
   commit id: "generate_joke (pizza joke)"
   branch samosa_branch
   checkout samosa_branch
   commit id: "update_state (topic: samosa)"
   commit id: "generate_joke (samosa joke)"
   commit id: "generate_explanation"
   checkout main
   commit id: "generate_explanation (pizza joke)"

# 1. Select the initial checkpoint (Step 0)
initial_cp = history[-2].config["configurable"]["checkpoint_id"]

# 2. Fork the state by updating 'topic' to 'samosa'
update_config = {
    "configurable": {
        "thread_id": "thread-1",
        "checkpoint_id": initial_cp,
        "checkpoint_ns": ""
    }
}
fork_info = app.update_state(update_config, {"topic": "samosa"})
new_checkpoint_id = fork_info["configurable"]["checkpoint_id"]

# 3. Resume execution from the newly forked checkpoint
fork_result = app.invoke(
    None,
    config={"configurable": {"thread_id": "thread-1", "checkpoint_id": new_checkpoint_id}}
)

print("Forked Execution Output:")
print("Joke:", fork_result["joke"])
print("Explanation:", fork_result["explanation"])

Step 7: Fault Tolerance & Crash Recovery #

Consider a workflow that crashes midway due to network loss or API rate limits. Persistence ensures that completed work is never lost:

import time

class CrashState(TypedDict):
    input: str
    step1: str
    step2: str

def step_1(state: CrashState):
    print("✅ Step 1 completed successfully.")
    return {"step1": "done"}

def step_2(state: CrashState):
    print("⏳ Step 2 running... (simulating network error / crash)")
    raise ConnectionResetError("Third-party API failed unexpectedly!")
    return {"step2": "done"}

def step_3(state: CrashState):
    print("✅ Step 3 completed successfully.")
    return {"step2": "finalized"}

# Build and compile
crash_builder = StateGraph(CrashState)
crash_builder.add_node("step_1", step_1)
crash_builder.add_node("step_2", step_2)
crash_builder.add_node("step_3", step_3)

crash_builder.set_entry_point("step_1")
crash_builder.add_edge("step_1", "step_2")
crash_builder.add_edge("step_2", "step_3")
crash_builder.add_edge("step_3", END)

crash_app = crash_builder.compile(checkpointer=InMemorySaver())
fail_config = {"configurable": {"thread_id": "resilience-demo"}}

# 1. Run until failure
try:
    crash_app.invoke({"input": "test_run"}, config=fail_config)
except ConnectionResetError as e:
    print(f"❌ Execution interrupted by error: {e}")

# 2. Check saved state
state_after_crash = crash_app.get_state(fail_config)
print("\nState saved at checkpoint:", state_after_crash.values)
print("Next node pending execution:", state_after_crash.next) # ('step_2',)

# 3. Once the issue is resolved, resume with None input
# (Step 1 will NOT be executed again!)

When you resume with crash_app.invoke(None, config=fail_config), LangGraph reads the pending node directly from the last successful checkpoint and continues execution seamlessly.

5. Persistence in Production: Transitioning from Memory to Postgres #

While InMemorySaver is perfect for development, production systems require durable storage like PostgreSQL:

pip install langgraph-checkpoint-postgres

from langgraph.checkpoint.postgres import PostgresSaver
# or from langgraph.checkpoint.postgres.aio import AsyncPostgresSaver

DB_URI = "postgresql://user:password@localhost:5432/agent_db"

with PostgresSaver.from_conn_string(DB_URI) as checkpointer:
    # Creates necessary checkpoint tables on first run
    checkpointer.setup()

    # Compile graph with Postgres checkpointer
    app = builder.compile(checkpointer=checkpointer)

    # Run graph as usual
    config = {"configurable": {"thread_id": "user_session_1001"}}
    app.invoke({"topic": "Quantum Computing"}, config=config)

Summary & Quick Reference #

Simple Example #

from typing import Annotated
from typing_extensions import TypedDict

from langgraph.graph import StateGraph, START, END
from langgraph.graph.message import add_messages
from langgraph.checkpoint.memory import InMemorySaver
from langchain_google_genai import ChatGoogleGenerativeAI


class State(TypedDict):
    messages: Annotated[list, add_messages]


# Create LLM
llm = ChatGoogleGenerativeAI(
    model="gemini-2.5-flash",
    temperature=0
)


# Chatbot node
def chatbot(state: State):
    res = llm.invoke(state["messages"])

    return {
        "messages": [res]
    }


# Build graph
builder = StateGraph(State)

builder.add_node("chatbot", chatbot)

builder.add_edge(START, "chatbot")


# Persistence
memory = InMemorySaver()

graph = builder.compile(
    checkpointer=memory
)


# Create a thread
config = {
    "configurable": {
        "thread_id": "user_123"
    }
}


# First message
res = graph.invoke(
    {
        "messages": [
            ("user", "My name is Sanjit.")
        ]
    },
    config=config
)

print(res["messages"][-1].content)


# Second message
res = graph.invoke(
    {
        "messages": [
            ("user", "What is my name?")
        ]
    },
    config=config
)

print(res["messages"][-1].content)

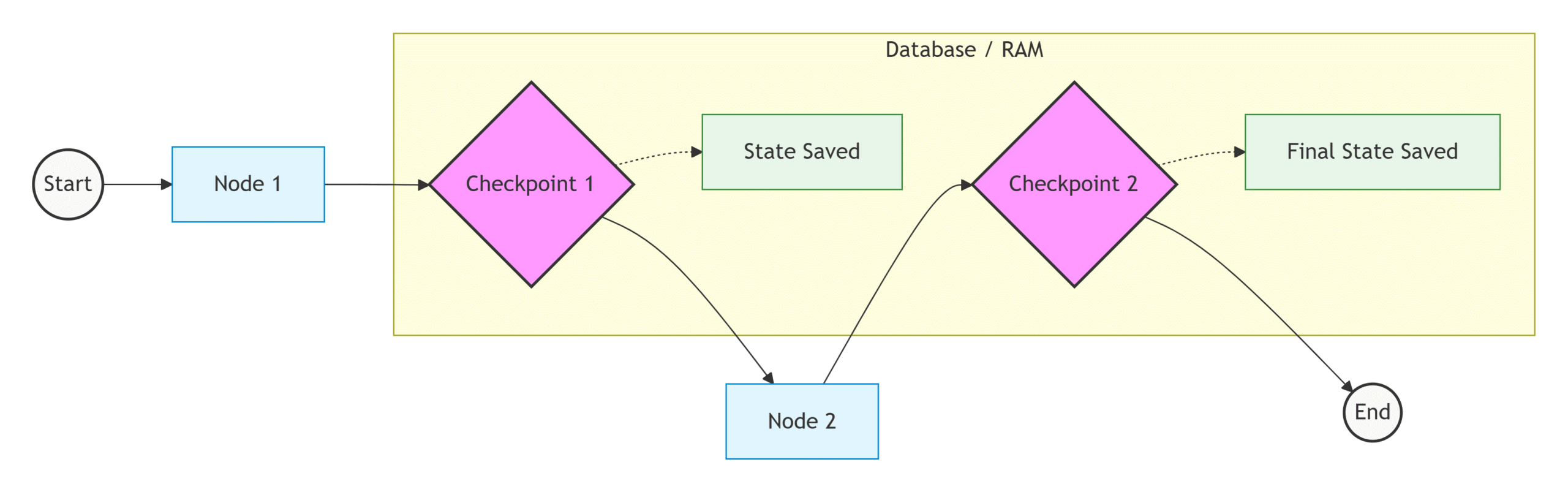

Summary Diagram: The Persistent Workflow

At every Checkpoint, the state is saved to a database, allowing for fault tolerance and session resumption.
