Human-in-the-Loop (HITL) in Agentic AI Systems Using LangGraph

14 min read


Master Human-in-the-Loop (HITL) AI in LangGraph

Artificial Intelligence has made massive strides in recent years, moving from simple text generation to autonomous Agentic AI systems.

These intelligent agents can search the web, execute code, process invoices, and manage databases without human intervention.

However, full autonomy brings a fundamental challenge: What happens when an AI model makes a mistake, misinterprets instructions, or hallucinates?

Why HITL Matters

When AI agents perform high-stakes tasks such as transferring money, deleting server files, or sending customer emails, relying completely on autonomous decision-making can lead to serious errors.

Human-in-the-Loop (HITL) introduces human supervision at important checkpoints.

In this guide, you will learn what Human-in-the-Loop AI is, why it is useful for agentic systems, the core HITL patterns, and how HITL works in LangGraph.

What Is Human-in-the-Loop (HITL) AI? #

Human-in-the-Loop (HITL) is a design approach in Artificial Intelligence where human judgment is explicitly integrated at critical checkpoints within an AI workflow.

Instead of allowing the AI model to execute every action autonomously, the system pauses at high-risk steps so that a human can:

  • Supervise the AI decision
  • Approve an action
  • Edit generated output
  • Reject an action
  • Provide additional information

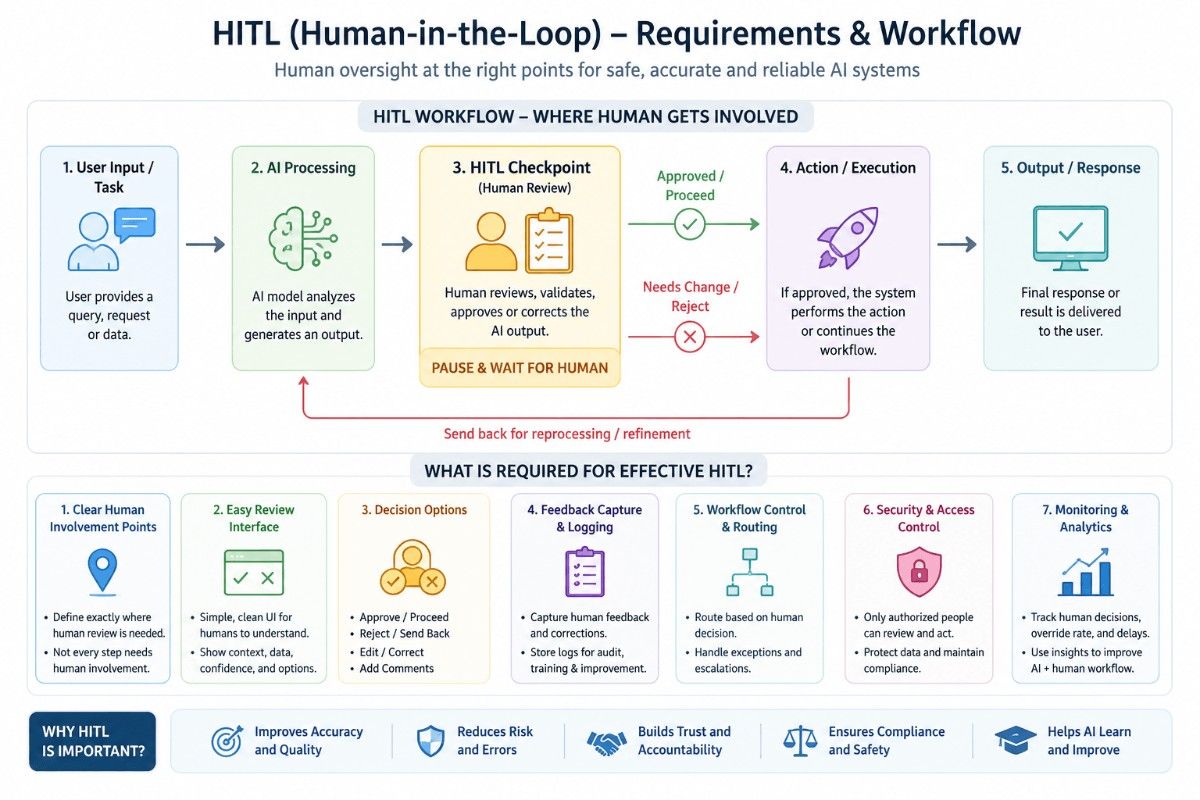

Simple HITL Architecture #

graph TD A[“👤 User Request / Trigger Task”] B[“🤖 AI Research & Draft Generation”] C[“🛑 HITL Checkpoint Human Review”] D[“✅ Approved”] E[“❌ Rejected”] F[“⚙️ Execute Action Payment / Post / Database”] G[“✏️ Halt / Edit Workflow”] A –> B B –> C C –> D C –> E D –> F E –> G style A fill:#6f42c1,color:#fff,stroke:#333,stroke-width:3px style B fill:#005cbf,color:#fff,stroke:#333,stroke-width:3px style C fill:#ff9800,color:#fff,stroke:#333,stroke-width:4px style D fill:#28a745,color:#fff,stroke:#333,stroke-width:3px style E fill:#dc3545,color:#fff,stroke:#333,stroke-width:3px style F fill:#28a745,color:#fff,stroke:#333,stroke-width:3px style G fill:#dc3545,color:#fff,stroke:#333,stroke-width:3px
Easy Way to Understand HITL:

AI performs the work → reaches a critical checkpoint → human reviews → workflow continues or changes.

Why Is Human-in-the-Loop Important? #

1. Balancing Autonomy with Human Control #

The primary goal of AI agents is autonomy. Agents can handle repetitive, high-volume tasks such as:

  • Answering basic customer questions
  • Filtering information
  • Researching topics
  • Generating drafts

However, critical decisions may require human control. HITL allows routine work to remain automated while humans retain control over high-impact actions.

Core Idea:

Automate routine tasks + Human approval for critical tasks.

2. Overcoming LLM Limitations and Hallucinations #

Large Language Models are powerful but are not infallible. They can:

  • Generate incorrect information
  • Misread documents
  • Misinterpret numerical values
  • Hallucinate facts
📄 Invoice Example

Suppose an AI system reads an invoice. The actual invoice amount is: $1,200

The AI incorrectly interprets it as: $120,000

A human review checkpoint can detect the mistake before the payment is executed.

3. Resolving Query Ambiguity #

User instructions can sometimes be ambiguous. For example:

✈️ Flight Booking Example

User: “Book flight tickets for next Friday.”

If the instruction is ambiguous, the system can pause and ask the human for clarification instead of making an expensive guess.

4. Establishing Accountability #

AI systems cannot independently take legal, ethical, or financial accountability for their actions. A human approval step can provide a clear point of human oversight for sensitive operations.

5. Preventing Destructive Operations #

Agents may have access to powerful tools such as:

  • Shell commands
  • Databases
  • File systems
  • Production systems

A human approval checkpoint can prevent a destructive action from being executed automatically.

The 4 Core HITL Design Patterns #

Pattern Purpose Example
Action Approval Human approves a high-risk action before execution. Approve a payment or database change.
Output Review & Edit Human reviews and modifies AI-generated content. Edit an AI-generated blog before publication.
Ambiguity Clarification Human provides additional information when instructions are unclear. Clarify which flight date the user wants.
Escalation AI transfers the task to a human when it cannot handle the situation. Customer support escalation.

1. Action Approval Pattern #

The AI reaches an action that is irreversible or high-risk. The workflow pauses and asks for explicit human approval.

graph LR A[“🤖 AI Agent”] B[“🛑 Approval Checkpoint”] C[“✅ Approve”] D[“❌ Reject”] E[“⚙️ Execute Action”] F[“⛔ Stop / Edit”] A –> B B –> C B –> D C –> E D –> F style A fill:#005cbf,color:#fff,stroke:#333,stroke-width:3px style B fill:#ff9800,color:#fff,stroke:#333,stroke-width:4px style C fill:#28a745,color:#fff,stroke:#333,stroke-width:3px style D fill:#dc3545,color:#fff,stroke:#333,stroke-width:3px style E fill:#28a745,color:#fff,stroke:#333,stroke-width:3px style F fill:#dc3545,color:#fff,stroke:#333,stroke-width:3px

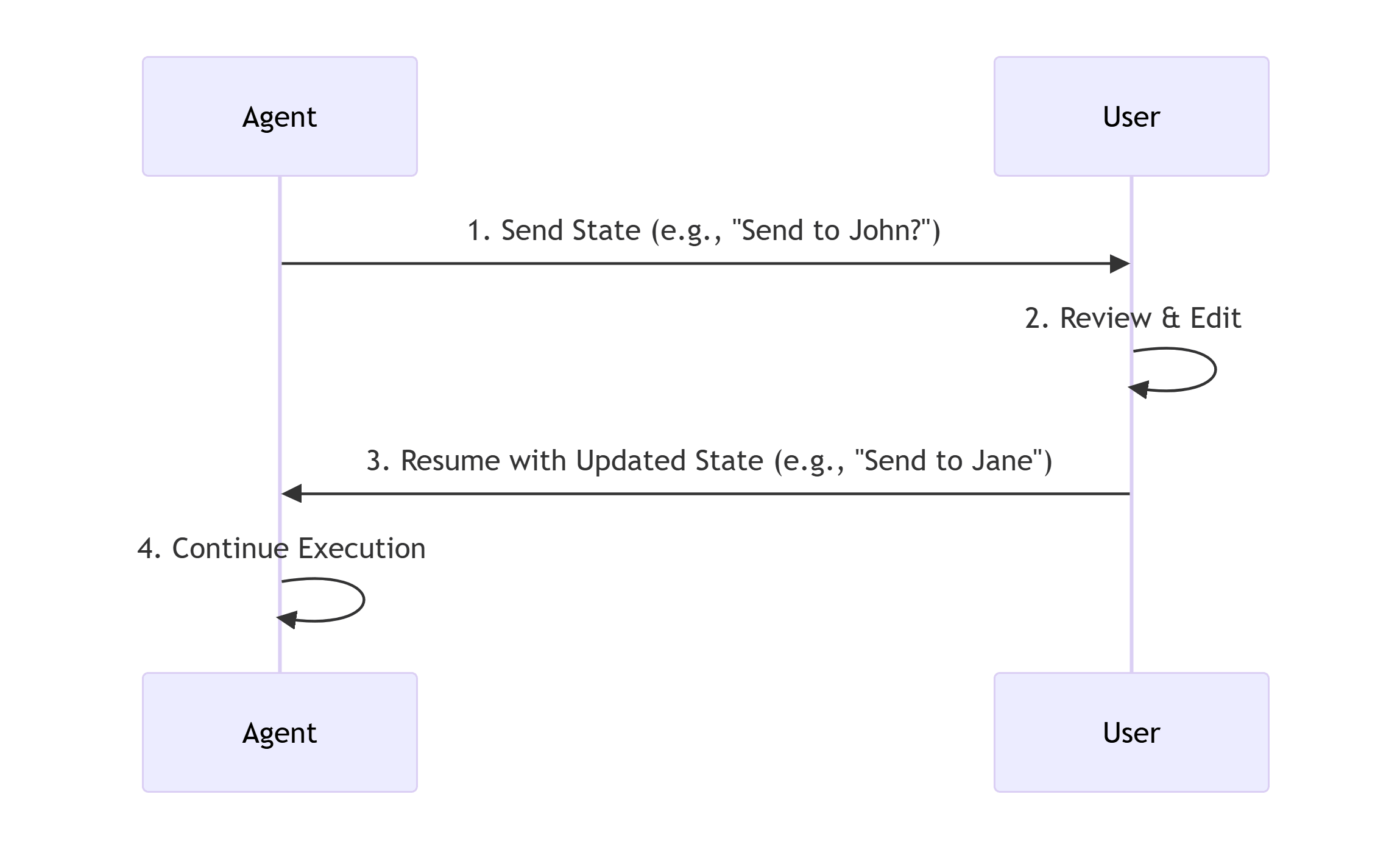

2. Output Review and Edit Pattern #

The AI generates an output, but a human can review and modify that output before it is used.

📝 Blog Generation Example

AI researches a topic → generates a blog → human editor reviews the blog → editor modifies it → final publication.

3. Ambiguity Clarification Pattern #

If the AI cannot confidently determine what the user means, the workflow can pause and request clarification.

4. Escalation Pattern #

The AI attempts to solve the user’s problem. If the problem exceeds the agent’s capabilities or requires human intervention, the workflow is escalated to a human operator.

How HITL Works in LangGraph #

LangGraph is a framework designed for building stateful, multi-step agentic workflows using graphs composed of nodes and edges.

Node: An action or function performed by the graph.

Edge: Defines how execution moves between nodes.

Three Important HITL Building Blocks #

Component Role
interrupt() Pauses graph execution and allows human input to be collected.
Command() Used when resuming the graph and providing information such as human feedback.
Checkpointer Persists graph state so execution can continue after a pause.

1. interrupt() #

The interrupt() function is used at a point where the workflow needs to pause and wait for human input.

from langgraph.types import interrupt

def approval_node(state):

    decision = interrupt(
        "Do you approve this action?"
    )

    return {
        "decision": decision
    }
Think of interrupt() as:

“Stop here and wait for human input.”

2. Command(resume=…) #

After a human provides feedback, the graph can be resumed by passing a Command containing the response.

from langgraph.types import Command

graph.invoke(
    Command(
        resume="approved"
    ),
    config=config
)
Think of Command(resume=…)

as: “Continue the paused workflow with this human response.”

3. Checkpointers #

When a workflow pauses, its state needs to be persisted so that the graph can continue correctly when resumed.

LangGraph uses checkpointers for this purpose. Examples include:

  • MemorySaver
  • Persistent database-backed checkpointers
Checkpointer: A component used to persist graph state so a workflow can resume from its saved execution state.

LangGraph HITL Architecture #

graph TD A[“🚀 Start Node”] B[“🔎 Research Node”] C[“📝 Draft / Agent Node”] D[“🛑 interrupt()”] E[“💾 State Saved”] F[“👤 Human Review”] G[“Command(resume=…)”] H[“▶️ Graph Resumes”] I[“⚙️ Execute Final Action”] A –> B B –> C C –> D D –> E E –> F F –> G G –> H H –> I style A fill:#6f42c1,color:#fff,stroke:#333,stroke-width:3px style B fill:#005cbf,color:#fff,stroke:#333,stroke-width:3px style C fill:#005cbf,color:#fff,stroke:#333,stroke-width:3px style D fill:#ff9800,color:#fff,stroke:#333,stroke-width:4px style E fill:#6f42c1,color:#fff,stroke:#333,stroke-width:3px style F fill:#28a745,color:#fff,stroke:#333,stroke-width:4px style G fill:#e91e63,color:#fff,stroke:#333,stroke-width:3px style H fill:#005cbf,color:#fff,stroke:#333,stroke-width:3px style I fill:#28a745,color:#fff,stroke:#333,stroke-width:4px

Step-by-Step HITL Execution Workflow #

Step 1: Graph Triggering #

The frontend or application invokes the graph with an initial state and configuration. A unique thread identifier is used to associate the execution with its persisted state.

graph.invoke(
    initial_state,
    config
)

Step 2: Standard Processing #

The graph executes its normal nodes. For example:

  • Research a topic
  • Generate information
  • Create a draft
  • Prepare an action

Step 3: Triggering the Interrupt #

When execution reaches a node containing:

interrupt(...)

the workflow pauses and waits for human input.

Step 4: State Persistence #

The graph’s state is persisted through the configured checkpointer so the workflow can later resume from the appropriate point.

Step 5: Human Review #

The application presents the interruption request to a human. The human can provide a decision such as:

  • Approve
  • Reject
  • Edit
  • Provide clarification

Step 6: Resume the Graph #

The application sends the human response back to the graph using Command(resume=…).

graph.invoke(
    Command(
        resume="approved"
    ),
    config=config
)

Step 7: Continue Execution #

The graph restores the relevant persisted state and continues the workflow according to the human response.

Complete HITL Flow in One Diagram #

graph TD A[“👤 User Request”] B[“🤖 Agent”] C[“🔎 Research”] D[“📝 Generate Output”] E[“🛑 interrupt()”] F[“💾 Checkpointer Save State”] G[“👤 Human Review”] H{“Human Decision”} I[“Command(resume=…)”] J[“⚙️ Continue Workflow”] K[“❌ Reject / Edit”] L[“✅ Final Action”] A –> B B –> C C –> D D –> E E –> F F –> G G –> H H –>|Approve| I H –>|Reject / Edit| K I –> J J –> L style A fill:#6f42c1,color:#fff,stroke:#333,stroke-width:3px style B fill:#005cbf,color:#fff,stroke:#333,stroke-width:3px style C fill:#005cbf,color:#fff,stroke:#333,stroke-width:3px style D fill:#005cbf,color:#fff,stroke:#333,stroke-width:3px style E fill:#ff9800,color:#fff,stroke:#333,stroke-width:4px style F fill:#6f42c1,color:#fff,stroke:#333,stroke-width:3px style G fill:#28a745,color:#fff,stroke:#333,stroke-width:4px style H fill:#e91e63,color:#fff,stroke:#333,stroke-width:3px style I fill:#005cbf,color:#fff,stroke:#333,stroke-width:3px style J fill:#005cbf,color:#fff,stroke:#333,stroke-width:3px style K fill:#dc3545,color:#fff,stroke:#333,stroke-width:3px style L fill:#28a745,color:#fff,stroke:#333,stroke-width:4px

Real-World Example: AI Payment Agent #

💳 AI Payment Approval Workflow

Imagine an AI agent that processes company invoices.

Step 1: AI reads the invoice.

Step 2: AI extracts the payment amount.

Step 3: AI prepares the payment.

Step 4: HITL checkpoint pauses the workflow.

Step 5: Human checks the payment details.

Step 6: Human approves or rejects.

Step 7: The graph resumes according to the decision.
graph LR A[“📄 Invoice”] B[“🤖 AI Agent”] C[“💰 Prepare Payment”] D[“🛑 HITL”] E[“👤 Human Review”] F[“✅ Approve”] G[“❌ Reject”] H[“🏦 Execute Payment”] A –> B B –> C C –> D D –> E E –> F E –> G F –> H style A fill:#6f42c1,color:#fff,stroke:#333,stroke-width:3px style B fill:#005cbf,color:#fff,stroke:#333,stroke-width:3px style C fill:#005cbf,color:#fff,stroke:#333,stroke-width:3px style D fill:#ff9800,color:#fff,stroke:#333,stroke-width:4px style E fill:#28a745,color:#fff,stroke:#333,stroke-width:4px style F fill:#28a745,color:#fff,stroke:#333,stroke-width:3px style G fill:#dc3545,color:#fff,stroke:#333,stroke-width:3px style H fill:#28a745,color:#fff,stroke:#333,stroke-width:4px

Quick Revision #

HITL → Human supervision inside an AI workflow.

interrupt() → Pause the workflow and request human input.

Command(resume=…) → Resume the paused workflow with human input.

Checkpointer → Persist graph state across the pause/resume process.

Action Approval → Human approves a high-risk action.

Output Review → Human reviews or edits AI-generated content.

Ambiguity Clarification → Human provides missing or unclear information.

Escalation → AI transfers the task to a human when necessary.

HITL in LangGraph: The Core Idea #

graph LR A[“🤖 AI Agent”] B[“⚙️ Perform Task”] C[“🛑 interrupt()”] D[“👤 Human”] E[“Command(resume=…)”] F[“▶️ Continue”] A –> B B –> C C –> D D –> E E –> F F –> B style A fill:#005cbf,color:#fff,stroke:#333,stroke-width:3px style B fill:#6f42c1,color:#fff,stroke:#333,stroke-width:3px style C fill:#ff9800,color:#fff,stroke:#333,stroke-width:4px style D fill:#28a745,color:#fff,stroke:#333,stroke-width:4px style E fill:#e91e63,color:#fff,stroke:#333,stroke-width:3px style F fill:#005cbf,color:#fff,stroke:#333,stroke-width:3px
One-Line Exam Definition:

Human-in-the-Loop (HITL) is an AI system design approach in which human intervention is incorporated at critical points of an automated workflow to review, approve, modify, reject, or clarify AI decisions.
LangGraph HITL Shortcut:

interrupt() → Pause

Checkpointer → Save state

Human → Review / Decide

Command(resume=…) → Resume

Quiz #

Q.1 What is the primary definition of Human-in-the-loop (HITL) within the context of agentic AI systems?



  • A method of replacing AI agents with human workers to handle repetitive customer support tasks.


  • An automated system that evaluates human performance in software development cycles.


  • A programming technique used to optimize the training speed of Large Language Models (LLMs).


  • An approach where a human actively participates at critical points in an AI workflow to supervise, approve, or guide the model.

Q.2 According to the source, why is accountability a major reason for implementing HITL in AI systems?



  • Because AI systems cannot be blamed or held legally responsible if something goes wrong.


  • Because accountability protocols significantly reduce the cost of running LLM APIs.


  • Because humans are much faster at calculating financial payments than AI agents.


  • Because humans never make errors when reviewing AI-generated content.

Q.3 In the Ambiguity Clarification pattern of HITL, which scenario best illustrates the need for human intervention?



  • A chatbot transfers a frustrated customer to a human executive after failing to solve a problem.


  • A user asks to book a flight for next Friday, and the agent needs to determine which Friday the user means.


  • An agent generates a blog draft and asks a human to correct grammar.


  • An agent requests permission before deleting old files from a server.

Q.4 Which specific LangGraph function pauses graph execution and waits for external input?



  • break_flow()


  • wait_for_user()


  • pause_node()


  • interrupt()

Q.5 Why is the Command(resume=…) mechanism used after an interrupt() in LangGraph?



  • To restart the graph from the START node.


  • To provide the human's response and resume execution from the interrupted point.


  • To permanently modify the graph structure.


  • To terminate the workflow after receiving user input.

Q.6 What is the critical role of a Checkpointer (such as MemorySaver) in a LangGraph HITL workflow?



  • Automatically correcting grammar before the human reviews the response.


  • Saving the workflow state so execution can resume exactly where it stopped.


  • Selecting the most suitable LLM for the user's request.


  • Encrypting communication between the frontend and backend.

Q.7 How does HITL contribute to Ethical Alignment in customer service applications?



  • By allowing humans to adjust AI responses so they align with company values and show appropriate empathy.


  • By forcing AI to always use formal language.


  • By deleting all negative customer feedback automatically.


  • By preventing AI from accessing external APIs.

Q.8 Which type of information is typically returned by the interrupt() function when execution resumes?



  • The complete graph definition.


  • The human-provided input or decision submitted after the interruption.


  • The source code of the interrupted node.


  • The checkpoint database schema.

Q.9 What is the Action Approval pattern in agentic AI systems?



  • The agent verifies its own reasoning before continuing.


  • The agent executes all actions immediately and asks for feedback afterward.


  • A human must approve a significant or risky action before the agent performs it.


  • The AI validates the user's prompt before processing it.

Q.10 In the Social Media Manager example, what happens during the Output Review phase?



  • A human reviews the generated social media post and may refine or approve it before publication.


  • The AI posts the content immediately and asks for feedback later.


  • The human writes the complete post while the AI only publishes it.


  • The AI searches social media trends before writing the post.
